Reliable Solar Hybrid System with
Battery Backup
Generate clean solar power during the day and store excess energy for use during the night or power outages. Hybrid solar systems combine the benefits of solar energy, battery storage, and grid connectivity to provide greater energy independence and reliability.
Smart Energy Management with
Solar and Battery Storage
A hybrid solar system is a renewable energy solution that combines solar photovoltaic (PV) panels, battery storage, and grid connectivity. The system generates electricity from solar panels during the daytime while storing excess energy in batteries for later use when sunlight is unavailable.
By integrating battery storage with solar power generation, hybrid systems provide a reliable and efficient energy solution for homes, businesses, and institutions seeking greater energy independence and uninterrupted power supply.
What is a Solar Hybrid System?

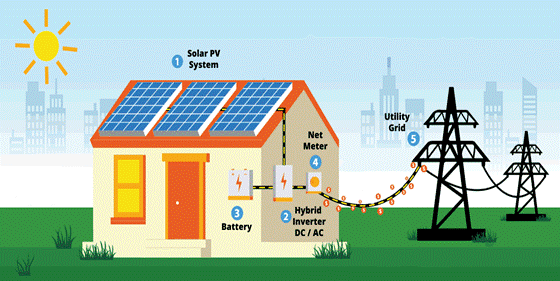

A solar hybrid system is a grid-connected solar power system that includes battery storage. During the day, solar panels generate electricity to power connected loads. Any excess energy produced is stored in batteries and can be used later during nighttime, cloudy weather conditions, or power interruptions.
This combination allows users to maximize solar energy utilization while maintaining access to backup power whenever required.
Benefits of Solar Hybrid Systems
Reliable Power Backup
Stored battery energy provides electricity during power outages and periods of low solar generation.
Better Energy Utilization
Excess solar energy generated during the day is stored and used later instead of being wasted.
Reduced Electricity Bills
Generate and consume your own solar power, reducing dependence on conventional electricity.
Greater Energy Independence
Minimize reliance on utility power by utilizing stored solar energy whenever needed.
Clean & Sustainable Energy
Solar energy is renewable, environmentally friendly, and helps reduce carbon emissions.
Flexible Energy Management
Hybrid systems automatically manage power from solar panels, batteries, and the utility grid to ensure continuous operation.
Product Pricing & Details Specification
Hybrid Data Sheets
System Price
3KW Hybrid System
| Description | Specification |
|---|---|
| Hybrid Inverter Capacity | 3 kWp |
| Battery 150AH | 4 Nos |
| PV array capacity | 3000W |
| PV Technology | Poly Crystalline Silicon |
| Module capacity | 335WP |
| Module efficiency | >15.0% |
| Topology | Transformerless |
| Inverter technology | MPPT Based |
| Inverter Efficiency | >99% |
| Solar insolation | 5.12 kWh/m2/Day |
| Land Area requirement | 350 Sq.ft |
| Power Evacuation | 415 / 230 V |
System Price
5KW Hybrid System
| Description | Specification |
|---|---|
| Hybrid Inverter Capacity | 5KWp |
| Battery 200AH | 4 |
| PV array capacity | 5000W |
| PV Technology | Poly Crystalline Silicon |
| Module capacity | 335WP |
| Module efficiency | >15.0% |
| Topology | Transformerless |
| Inverter technology | MPPT Based |
| Inverter Efficiency | >99% |
| Solar insolation | 5.12 kWh/m2/Day |
| Land Area requirement | 550 Sq.ft |
| Power Evacuation | 415 / 230 V |
Solar Backup Systems
(Off-Grid Systems)

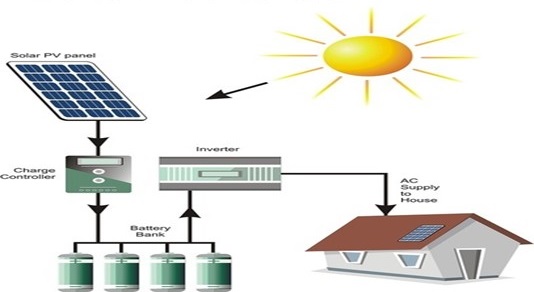

Battery backup solar PV systems work similarly to conventional generator backup systems but offer the added advantage of generating clean and renewable solar energy during the daytime.
Direct Consumption
Used immediately for daily power consumption.
Battery Storage
Stored in batteries for later use during nighttime or power outages.
Grid Export
Exported to the utility grid where applicable to reduce costs.
This helps maximize energy efficiency while reducing electricity costs and dependence on conventional power sources.
1. 2KVA / 24VDC Backup System
| Description | Qty |
|---|---|
| Inverter 2KVA-24VDC –MPPT Make: EASTMAN | 1 No |
| Solar PV Panel- 200Wp EASTMAN | 5 Nos |
| SOLAR 150AH BATTERY EASTMAN | 2 Nos |
| Distribution board, Balance of Systems (BOS) such as lugs, cable tie and other hardware components etc. | LS |
| MMS Array Junction Box (AJB) | As req |
2. 3KVA / 48VDC Backup System
| Description | Qty |
|---|---|
| Inverter 3KVA-48VDC –MPPT Make: EASTMAN | 1 No |
| Solar PV Panel- 200Wp EASTMAN | 5 Nos |
| SOLAR 150AH BATTERY EASTMAN | 4 Nos |
| Distribution board, Balance of Systems (BOS) such as lugs, cable tie and other hardware components etc. | LS |
| MMS Array Junction Box (AJB) | As req |
Ideal Applications
Solar hybrid systems are suitable for a wide range of applications.
Frequently Asked Questions
Clear, factual answers regarding system capabilities, savings potential, and installation requirements.
Ready to Switch to a Solar Hybrid System?
Our experienced team will help you choose the ideal solar and battery backup solution to reduce electricity costs, improve energy reliability, and maximize long-term savings.
